Cone Drive’s Worm Gearing Servo solutions are designed for high precision and efficiency in demanding applications. Utilizing Cone Drive’s renowned double-enveloping worm gear technology, these gearboxes deliver superior torque and smooth operation in a compact, right-angle design. They are adaptable to a wide variety of servo motor sizes and offer options for zero, low, or standard backlash to meet specific precision requirements. With robust construction and advanced engineering, Cone Drive’s Worm Gearing Servo products ensure reliable performance and long service life, making them ideal for automation, robotics, and other precision-driven industries.
Home » Suppliers » Cone Drive » Worm Gearing (Servo)

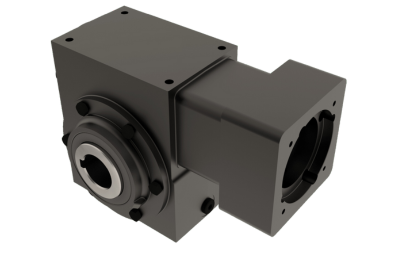

Cone Drive’s Series W gearbox product line is designed for high-precision motion control applications. These high precision servo gearboxes feature Cone Drive’s double-enveloping worm gearing, supported by high-speed angular contact bearings, ensuring superior torque capacity and durability. The Series W …
The Cone Drive Series HP Gearbox is a high-performance solution designed for applications requiring extremely high torque and precision. Utilizing industry-leading right angle, double-enveloping worm gear technology, the Series HP offers exceptional power in a compact and quiet package. This gearbox is …

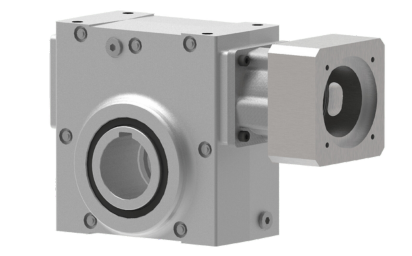

The Cone Drive Series S Gearbox is a versatile and cost-effective servo reducer designed for a wide range of applications. It features a lightweight aluminum housing that enhances thermal performance and is directly interchangeable with competitive models. The Series S gearbox is …

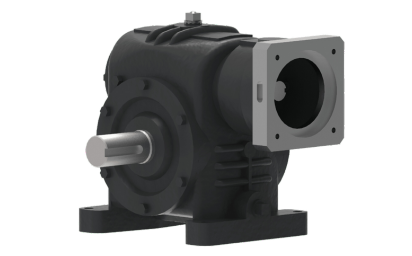

The Cone Drive Series RG Gearbox is a versatile and robust solution designed for mid-range power applications. This gearbox features Cone Drive’s renowned double-enveloping worm gear technology, which enhances performance and efficiency. The unique design allows for increased contact area between the …

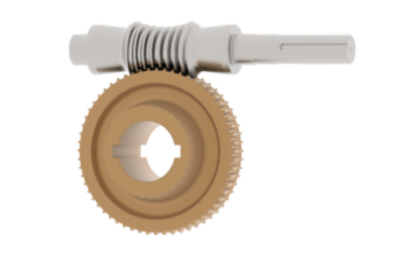

Cone Drive’s gearsets deliver precision and durability. Trusted since 1925, their double-enveloping worm gear technology provides high torque and efficiency. These gearsets fit a wide range of applications and come in various sizes and ratios. You can customize configurations to …
Form is loading
Please Wait
Table
| Feature | Series W | Series S | Series FS | Series HP | Series RG |
|---|---|---|---|---|---|
| Backlash Options | Standard, Low, Zero | Standard, Low, Zero | Standard, Low, Zero | Standard, Low, Zero | Standard, Low, Zero |
| Housing Material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Output Torque | Up to 11,700 lb-in | Up to 7,800 lb-in | Up to 7,800 lb-in | Up to 7,800 lb-in | Up to 7,800 lb-in |
| Gear Ratios | 5:1 to 60:1 | 5:1 to 60:1 | 5:1 to 60:1 | 5:1 to 60:1 | 5:1 to 60:1 |
| Ingress Protection | IP65 | IP65 | IP65 | IP65 | IP65 |
| Input Options | Solid shaft, Nema + Servo motor | Solid shaft, Nema + Servo motor | Solid shaft, Nema + Servo motor | Solid shaft, Nema + Servo motor | Solid shaft, Nema + Servo motor |
| Output Shaft Options | Solid, hollow shaft, shrink disc | Solid, hollow shaft, shrink disc | Solid, hollow shaft, shrink disc | Solid, hollow shaft, shrink disc | Solid, hollow shaft, shrink disc |
| Mounting Options | Universal | Universal | Universal | Universal | Universal |
| Special Features | Double Enveloping Worm Gearing | Lightweight, economical | High precision, compact design | High precision, compact design | Adaptable for mid-range power |
